96 fibers or 144 fibers Optical Distribution Box FTTH Passive Splitter Optical Clousre manufacturers and suppliers in China

96 fibers or 144 fibers Optical Distribution Box FTTH Passive Splitter Optical Clousre Admin Edit

Model:	FTTH-08H6
Min. Order:	1 Piece/Pieces
Trade Term:	FOB,CFR,CIF,FCA,EXW
Payment Terms:	Paypal, T/T, WU
Place of Origin:	Zhejiang, China (Mainland)
Means of Transport:	Ocean, Air, Land
Production Capacity:	50000pcs/year

Packing:	carton box	Delivery Date:	in a week
Dimension:	382x245x140mm	Max. Capacity:	96 / 144 fibers
Fiber Optic Slice Tray (FOST):	1-6 pcs of FOST with 24 fibers per tray	Adapter / PLC:	No adapters / 1x8, 1x16 PLC

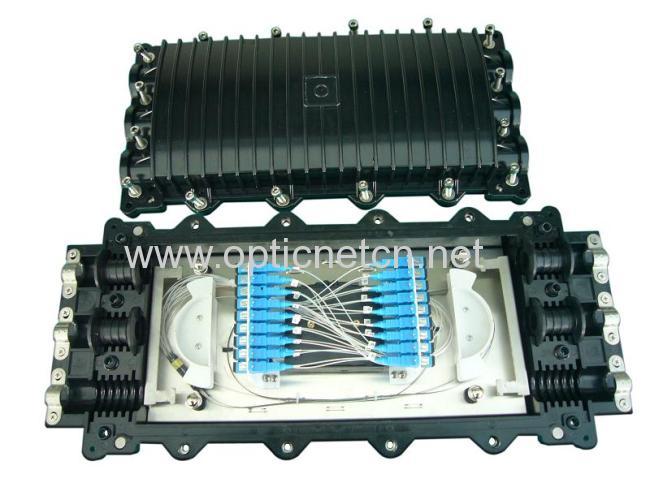

FTTH-08H6 Optical Distribution Box

Description

The FTTH-08H6 fiber access termination closure is able to hold max. 144 splicing closure.

It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.

Features

> Water-proof design with IP65

> Integrated with flap-up splice cassette and adapter holder

> Suitable for the fusion splice or mechanical splice

> It can be used for cut, uncut and taut sheath applications

> Re-enterable and reusable

> Installation and re-entry with a minimum tools

> It can be used for different type of fiber cable

Application

> FTTH, FTTB, FTTC

> Telecommunication Network

> CATV

> Local Area Network

Ordering Information

Model No	Fiber Optic Slice Tray (FOST)	Total Capacity (fibers)	Adapter/ PLC	Dimension (LxWxD)mm	Cable Entry and Size
FTTH-08H6 I	1-6 pcs of FOST with 24 fibers per tray	144 fibers	No adapters / 1x8, 1x16 PLC	382x245x140	1 oval port for un-cut cable with diameter max.17.5mm. 6 round ports for cable with diameter max.17.5mm.
FTTH-08H6 II	1-4 pcs of FOST with 24 fibers per tray	96 fibers	16 SC adapters / 1x8,1x16 PLC

Model No

Fiber Optic Slice Tray

(FOST)

Total Capacity (fibers)

Adapter/ PLC

Dimension (LxWxD)mm

Cable Entry and Size

FTTH-08H6 I

1-6 pcs of FOST

with 24 fibers per tray

144 fibers

No adapters /

1x8, 1x16 PLC

382x245x140

1 oval port for un-cut cable with diameter max.17.5mm.

6 round ports for cable with diameter max.17.5mm.

FTTH-08H6 II

1-4 pcs of FOST

with 24 fibers per tray

96 fibers

16 SC adapters

/ 1x8,1x16 PLC

FTTH-08H6 I

FTTH-08H6 II
