Outdoor Fiber Splitter Terminal (PLC 1X8)

Model: MDU 208C
Place of Origin: Zhejiang,China (Mainland)
Dimension: 200x215x54(mm)
Max Capacity: 8 fibers
Max.of Adapter: 8 pcs of SC simplex or LC duplex
No. of Port: 2 input and 8 output
IP Grade: IP 54

inquiry

skype basketAdd to Basket  Edit

Share |

Product Description

Payment & Shipping Terms Supply Capacity
Trade Term:FOB,CFR,CIF,FCA,EXWPacking:carton
Payment Terms:L/C, T/TDelivery Date:in one week
Means of Transport:Ocean, Air, Land

Description

The MDU 208C Splitter Terminal from Optic Network Technology is rugged, low cost, low profile interconnection between central office and multi-dwelling units of FTTx application. The design of MDU 208C splitter terminal combines the functionality of a local convergence cabinet with MDU terminal. Its multi-layer design allows installers to access only the components necessary for initial installation or subscriber turn-up. It can house the splitter and allows for pigtail splicing of distribution/drop cables as needed

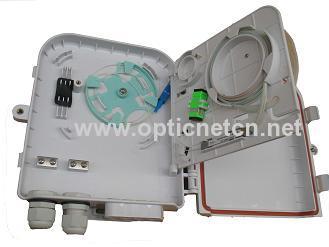

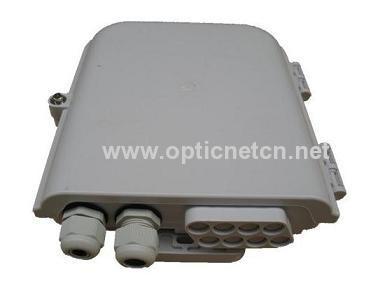

outdoor fiber splitter terminal (PLC 1X8)




outdoor fiber splitter terminal (PLC 1X8)




outdoor fiber splitter terminal (PLC 1X8)




Features

> Indoor or outdoor rated

> Available 1x4, 2X4,1x8 splitter as well as splitter

> Max. up 8 pcs of FTTH drop cable or pigtails

> Suitable for wall-mounting or pole mounting application

> 2 pcs of inlet ports and 8 pcs of outlet ports

> IP Grade: IP 65


Application

> FTTH, FTTB, FTTC

> Telecommunication Network

> CATV

> Local Area Network


Ordering Guidance


Model


PLC Splitter


Max. No. of Adapter

Dimension(mm)

(WxLxD)


No. of Ports


MDU 208C


1x4, 2x4, 1x8

8 pcs of SC simplex

or LC duplex

200x215x54

2 input ports and

8 output ports for drop cable

Category: Outdoor Fiber Optical Termination Box

Related Category: Indoor Fiber Optical Termination Box
