1310 / 1490 / 1550nm Micro-Optic Wavelength Division Multiplexer MWDM Admin Edit

Model: 1310 / 1490 / 1550nm MWDM
Min. Order: 1 Piece/Pieces
Trade Term: FOB,CFR,CIF,FCA,EXW
Payment Terms: Paypal, L/C, T/T, WU
Place of Origin: Zhejiang, China (Mainland)
Means of Transport: Ocean, Air, Land
Production Capacity: 20000pcs
Packing: packed in carton box Delivery Date: 1 week
Pass Channel Wavelength Range (nm): 1530~1570 Reflect Channel Wavelength (nm): 1260~1360 &1480-1500
Insertion Loss(dB) of Pass Channel: <0.8 Insertion Loss (dB) of Reflect Channel: <0.6
Isolation(dB) of Pass Channel: >30 Isolation(dB) of Reflect Channel: >15
Polarization Dependent Loss (dB): <0.1 Directivity(dB): >50
Operating Temperature: 0~+70 ºC Storage Temperature: -40~+85 ºC

1310/1490/1550nm Micro-Optic Wavelength Division Multiplexer




Features

- System Monitoring

- WDM System

- Transmitters and Fiber Laser

- Fiber Optical Amplifier

- Fiber Optic Instruments


Applications

- Wide Operating Wavelength Range

- Low Insertion Loss

- Ultra Flat Wide Pass band

- High Channel Isolation

- High Stability and Reliability

- Epoxy Free Optical Path


Performance Specifications

Parameter

MWDM

Pass Channel Wavelength Range(nm)

1530~1570

Reflect Channel Wavelength (nm)

1260~1360 & 1480-1500

Insertion Loss (dB).

Pass Chanel

<0.8

Reflect Chanel

<0.6

Insertion Loss Variation(dB)

Pass Chanel

<0.3

Reflect Chanel

<0.3

Isolation

Pass Chanel

>30

Reflect Chanel

>15

Insertion Loss Temperature Sensitivity (dB/ºC)

<0.005

Polarization Dependent Loss (dB)

<0.1

Polarization Mode Dispersion (p s)

<0.1

Directivity (dB)

>50

Return Loss (dB)

>45

Power Handing (m W)

300

Operating Temperature (ºC)

0 ~ +70ºC

Storage Temperature (ºC)

-40 ~ +85ºC

Dimension (mm)

Ø5.5 x L35 (L38 for 900um Jacket)

All insertion loss don't include connector loss

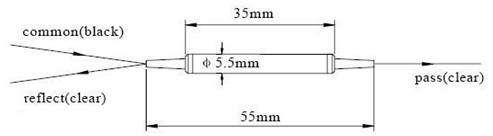

Dimensions (Without Connector)



Order Information

MWDM

Wavelength

Pigtail Style

Fiber Length

Connector

Package Type

534=1550 pass/

1310&1490 reflect
345=1310&1490

pass/1550 reflect
435=1490 pass/

1310&1550 reflect


1=Bare Fiber

2=900um loose tube

3=3mm cable

1=1m

2=2m

0=None

1=FC/APC

2=FC/PC

3=SC/APC

4=SC/PC

5=ST

6=LC

7=LC/APC

xx=other

5534: ¢5.5×34mm

4225: ¢4.2×25mm

X: Others
