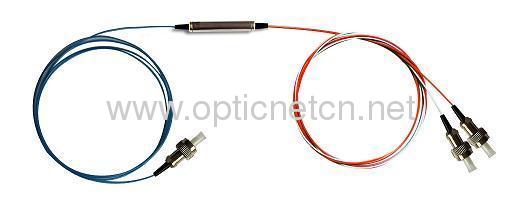

C Band Red and Blue Mini Wavelength Division Multiplexer MWDM Admin Edit

Model: C Band Red and Blue MWDM
Min. Order: 1 Piece/Pieces
Trade Term: FOB,CFR,CIF,FCA,EXW
Payment Terms: Paypal, L/C, T/T, WU
Place of Origin: Zhejiang, China (Mainland)
Means of Transport: Ocean, Air, Land
Production Capacity: 20000pcs
Packing: packed in carton box Delivery Date: asap
Pass Channel Wavelength Range (nm): 1547.4~1561 (1530~1543.2) Reflect Channel Wavelength (nm): 1530~1543.2 (1547.4~1561)
Insertion Loss(dB) of Pass Channel: < 0.6dB Insertion Loss (dB) of Reflect Channel: < 0.5dB
Isolation(dB) of Pass Channel: > 25 Isolation(dB) of Reflect Channel: > 12
Polarization Dependent Loss (dB): < 0.1 Directivity(dB): > 50
Operating Temperature: 0 ~ +70ºC Storage Temperature: -40 ~ +85ºC

C Band Red and Blue Micro-Optic Wavelength Division Multiplexer


Features

- Wide Operating Wavelength Range

- Low Insertion Loss

- Ultra Fault Wide Pass band

- High Channel Isolation

- High Stability and Reliability


Applications

- System Monitoring

- WDM System

- Transmitters and Fiber Laser

- Fiber Optical Amplifier

- Fiber Optic Instruments


Performance Specifications

Parameter

MWDM

Pass Channel Wavelength Range(nm)

1547.4~1561(1530~1543.2)

Reflect Channel Wavelength (nm)

1530~1543.2 (1547.4~1561)

Insertion Loss (dB).

Pass Chanel

< 0.6

Reflect Chanel

< 0.5

Insertion Loss Variation(dB)

Pass Chanel

< 0.3

Reflect Chanel

< 0.3

Isolation

Pass Chanel

> 25

Reflect Chanel

> 12

Insertion Loss Temperature Sensitivity (dB/ºC)

< 0.005

Polarization Dependent Loss (dB)

< 0.1

Polarization Mode Dispersion (p s)

< 0.1

Directivity (dB)

> 50

Return Loss (dB)

> 50

Power Handing (m W)

300

Operating Temperature (ºC)

0 ~ +70ºC

Storage Temperature (ºC)

-40 ~ +85ºC

Dimension (mm)

Ø5.5 x L35 (L38 for 900um Jacket)

All insertion loss don't include connector loss


Dimensions (Without Connector)
C Band Red and Blue Mini Wavelength Division Multiplexer



Order Information

MWDM

Wavelength

Pigtail Style

Fiber Length

Connector

Package Type

CR=1554 pass

1536 reflect

CB=1536 pass

1554 reflect

1=Bare Fiber

2=900um loose tube

3=3mm cable

1=1m

2=2m

0=None

1=FC/APC

2=FC/PC

3=SC/APC

4=SC/PC

5=ST

6=LC

7=LC/APC

xx=other

P1=¢5.5*35(L)

P2=¢5.5*38(L)

P3=98(L)*14(W)*8.5(H)
