288 fibers Dome Heat Shrink Fiber Optic splice Enlosure 144 fibers Mechanical Joint Closure Fiber Enclosure Box Admin Edit

Model: GPJ-08V5 I
Min. Order: 1 Piece/Pieces
Trade Term: FOB,CFR,CIF,FCA,EXW
Payment Terms: Paypal, L/C, T/T, WU
Place of Origin: Zhejiang, China (Mainland)
Means of Transport: Ocean, Air, Land
Production Capacity: 50000pcs/year
Packing: 4pcs/ctn,... Delivery Date: one week
Dimension: 510 x 230 (mm) Max.Capacity: 144 or 288 fibers
Fiber Optic Splice Tray (FOST): 1-6 pieces of FOST 8524 with 24 or 48 fibers per tray No of Cable Entry: 1 large oval port 4 round ports

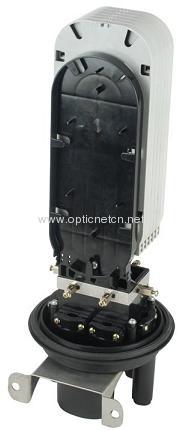

The features of GPJ-08V5 Fiber Optic Closure



Specification

● Easy to re-enter, it never requires re-entry tool kit.

● The strong housing provide fire resistant, waterproof and quakeproof while protecting splices during pulling, torsinning and impacting

● Design flexibility and high reliable sealing system

● Cable sealing method: heat shrink type


Application

● It can be used in straight-through and branching application

● It can be used in aerial, underground, direct buried, Wall-mounting, hand hole and duct mounting application.

● It can be mounted on a pole, wall or strand.



                  Tray 8524 (LxWxH: 275 x 112 x 10.50 mm)


                         Tray 8412 (LxWxH 227 x 92 x 8.5 mm)


Ordering Information

Model No.

Fiber Optic Splice Tray

(FOST)

Total Capacity

(fibers)

Dimension

(H x D) mm

No of Cable Entry


GPJ-08V5 I


1-6 pieces of FOST 8524

with 24 or 48 fibers per tray

 144 or 288

510 x 230

1 large oval port

4 round ports


GPJ-08V5 II


1-8 pieces of FOST 8412

with 12 fibers per tray

 96


Accessories

The accessories including in the FOSC: earthing wire, nylon tie, buffer tube, emery paper, metal hoop, insulation tape, aluminum foil, dry agent.

Accessories to be ordered in addition: earthing ground, pressure testing valve, small heat shrink fixing sleeve (for small round ports),

big heat shrinkable fixing sleeve with branching-off clip( for large oval port).
