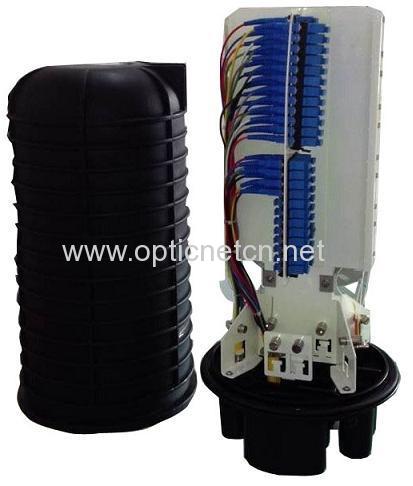

Fiber Optic Splice Closure (480 Fibers Or 240 Fibers)

Fiber Optic Splice Closure (480 fibers or 240 fibers) Admin Edit

Min. Order: 10 Piece/Pieces
Trade Term: FOB,CIF,FCA,EXW
Payment Terms: T/T
Place of Origin: Zhejiang, China (Mainland)
Means of Transport: Ocean, Air, Land
Packing: carton
Delivery Date: one week
Total Capacity (fibers): 480 fibers; 240 fibers No. of adapters: 48 pcs of SC
Dimension (H x D) mm: 525x245 No of Cable Entry: 2 large oval port 8 round ports

GPJ-01V10 Fiber Optic Splice Closure









Specification

● Easy to re-enter, it never requires re-entry tool kit.

● The strong housing provide fire resistant, waterproof and quakeproof while protecting splices during pulling, torsining and impacting

● Design flexibility and high reliable sealing system

● Cable sealing method: heat shrink type and mechanical type


Application

● It can be used in straight-through and branching application

● It can be used in aerial, underground, direct buried,wall-mounting, hand hole and duct mounting application.


Ordering Information

   Model No.

Fiber Optic Splice Tray

            (FOST)

Total Capacity

      (fibers)

No. of adapters

Dimension

 (H x D) mm

No of

 Cable Entry

GPJ-01V10 I

40 pieces of FOST

with 12 fibers per tray

   480 fibers

        /

 525x245

2 large oval port

8 round ports

(heat shrink type)

GPJ-01V10 II

20 pieces of FOST

with 12 fibers per tray

  240 fibers

48 pcs of SC

GPJ-01VM12 I

40 pieces of FOST

with 12 fibers per tray

  480 fibers

      /

12 ports

(mechanical type)

GPJ-01VM12 II

20 pieces of FOST

with 12 fibers per tray

  240 fibers

48 pcs of SC


Accessories

The accessories included in the FOSC: earthing wire, nylon tie, buffer tube, emery paper, metal paper, metal hoop,  insulation tape, aluminum foil.

The accessories to be ordered in addition: earthing ground, pressure testing valve, small heat shrinkable fixing sleeve (for small round), big heat shrinkable fixing sleeve with branching-off clip (for large oval port)
