Fiber Optic Termination Box 24 fibers Optical Network Terminal Box Wall Mount Termination Box Admin Edit

Model: GP-ZCN (24 fibers)
Min. Order: 1 Piece/Pieces
Trade Term: FOB,CFR,CIF,FCA,EXW
Payment Terms: Paypal, L/C, T/T, WU
Place of Origin: Zhejiang, China (Mainland)
Means of Transport: Ocean, Air, Land
Production Capacity: 20000pcs/year
Packing: 8pcs/ctn, 43*37*47cm,... Delivery Date: 1 week
Dimension: 330 x 183 x 100 (mm) Max. Fiber Count: 24 fibers
Max. No. of Adapters: 24 SC, FC, ST Adapter

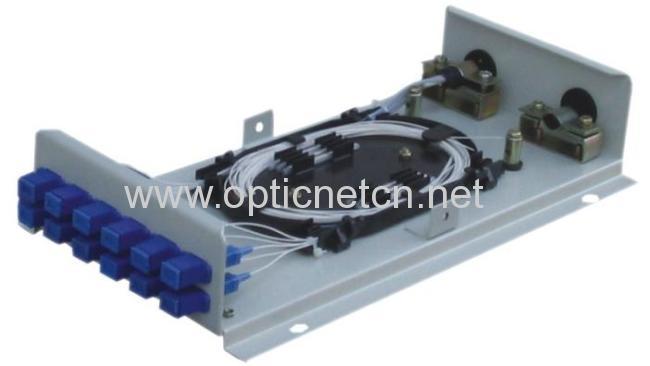

GP-ZCN Fiber Optic Termination Box


GP-ZCN termination box is suitable for jointing fiber Cable and pigtail, and it protects fiber optic splices and helps to distribute.

The termination box is either a wall- mounting type or a desktop type which is mainly used in telecommunication equipment room and network equipment.





Features

> Light weight, small size, easy installation

> Provide splice protection of fiber cable and pigtail Made of metal quality, with static-spray surface, It is of nice shape.

> Slide-iN-Lock splice tray, therefore easy for installation Suit for FC, SC, ST, LC adapters

> Provided with 2 entry/exit ports


Ordering Guidance

 Model No.

  Max. Fiber Count

Max. No. of Adapters

 (SC, FC, ST)

   L x W x H (mm)

GP-ZCN-FC12

12

12

330 x 183 x 70

GP-ZCN-SC12

12

12

330 x 183 x 70

GP-ZCN-ST12

12

12

330 x 183 x 70

GP-ZCN-FC24

24

24

330 x 183 x 100

GP-ZCN-SC24

24

24

330 x 183 x 100

GP-ZCN-ST24

24

24

330 x 183 x 100

GP-ZCN-FC48

48

48

330 x 183 x 160

GP-ZCN-SC48

48

48

330 x 183 x 160

GP-ZCN-ST48

48

48

330 x 183 x 160


Accessories

Accessories provided with termination box: insulation tape, nylon tie, numbering paper, and fixer;

Accessories to be ordered in addition: pigtail, patchcord and adapter.
