Max. 288 Fiber Fiber Optic Splice Box

Max. 288 fiber Fiber Optic Splice Box Admin Edit

Min. Order: 10 Piece/Pieces
Trade Term: FOB,CFR,CIF,FCA,EXW
Payment Terms: L/C, T/T
Place of Origin: Zhejiang, China (Mainland)
Means of Transport: Ocean, Air, Land
Packing: 4 pcs in one carton
Delivery Date: one week
Dimension: 528x258 (mm) Max. Capacity: 288 fibers
Max. No of Splice Tray: 12 pcs No. of Ports: 1 large oval port + 6 small round ports

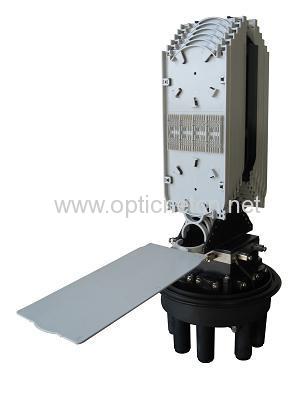

GPJ-08V7 Fiber Optic Splice Closure

Fiber Optic Splice BoxFiber Optic Splice BoxFiber Optic Splice Box

Application

It can be used in straight-through and branching application.

>  It can be used in aerial, underground, direct buried,wall-mounting, hand hole and duct mounting application.

> It can be mounted on a pole, wall or strand.

Specification

> To re-enter, it never requires re-entry tool kit.

> The strong housing provide fire resistant, waterproof and quakeproof while protecting splices during pulling, torsining and impacting.

> Design flexibility and high reliable sealing system.

> Cable sealing method: heat shrink type.


Ordering Information

Model No.

Fiber Optic Splice Tray

(FOST)

Total Capacity

(fibers)

Dimension

(H x D) mm

No of Cable Entry


GPJ-08V7


1-12 pieces of FOST 8524

with 24 fibers per tray

288

528X258

1 large oval port

6 round ports


Accessories

The accessories included in the FOSC: earthing wire, nylon tie, buffer tube, emery paper, metal paper, metal hoop, insulation tape, aluminum foil.

The accessories to be ordered in addition: earthing ground, pressure testing valve, small heat shrinkable fixing sleeve (for small round), big heat shrinkable fixing sleeve with branching-off clip (for large oval port).
