| Model: | MDU 208E |
|---|---|
| Min. Order: | 1 Piece/Pieces |
| Trade Term: | FOB,CFR,CIF,FCA,EXW |
| Payment Terms: | Paypal, L/C, T/T, WU |
| Place of Origin: | Zhejiang, China (Mainland) |
| Means of Transport: | Ocean, Air, Land |
| Production Capacity: | 50000pcs/year |
| Packing: | carton box | Delivery Date: | in one week |
|---|---|---|---|
| Dimension: | 230x170x49mm | Max Capacity: | 8 fibers |
| Max.of Adpater: | 8 pcs of SC simplex or LC duplex | No. of Port: | 2 input ports and 8 output ports for drop cable |
| PLC Splitter: | 1x4, 2x4, 1x8 |

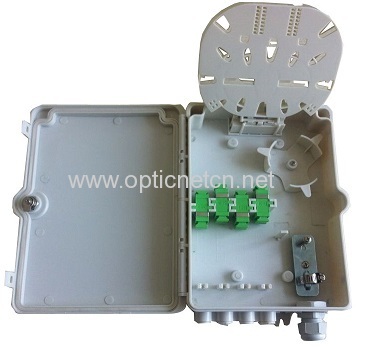

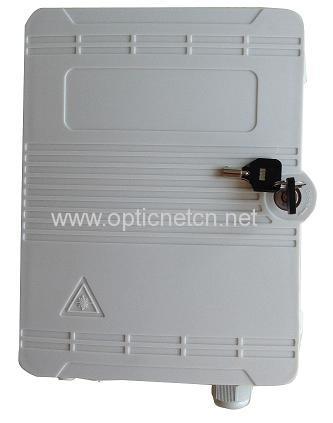

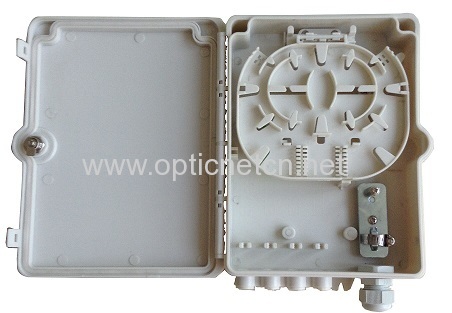

Outdoor MDU 208E Splitter Terminal
Description
The MDU 208E Splitter Terminal from Optic Network Technology is rugged, low cost, low profile interconnection between central office and multi-dwelling units of FTTx application.
The design of MDU 208E splitter terminal combines the functionality of a local convergence cabinet with MDU terminal.
Its multi-layer design allows installers to access only the components necessary for initial installation or subscriber turn-up.
It can house the splitter and allows for pigtail splicing of distribution/drop cables as needed.
Features
> Indoor or outdoor rated
> Available 1x4, 2X4,1x8 splitter as well as splitter
> Max. up 8 pcs of FTTH drop cable or pigtails
> Suitable for wall-mounting or pole mounting application
> 2 pcs of inlet ports and 8 pcs of outlet ports
> IP Grade: IP 65
Application
> FTTH, FTTB, FTTC
> Telecommunication Network
> CATV
> Local Area Network
Dimensions
Model | PLC Splitter | Max Capacity | Max. No. of Adapter | Dimension (mm)(WxLxD) | No. of Ports |
MDU 208E | 1x4, 2x4, 1x8 | 8 fibers | 8 pcs of SC simplex or LC duplex | 230x170x49 | 2 input ports and 8 output ports for drop cable |
Category: Multi Dwelling Unit
Related Category: Drop Cable Splice Protective Box Y Type FTTH box Optical Fast Connector Mechanical Fiber Splice Optical Socket
