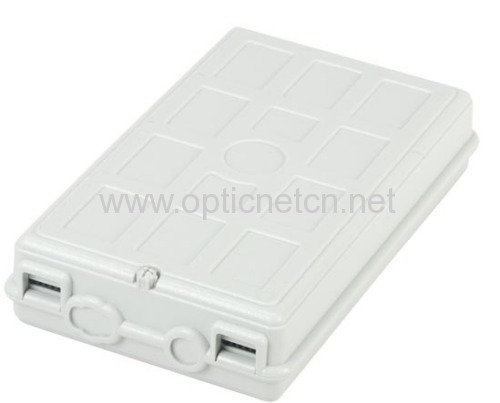

Indoor 12 fibers Optical Termination Box FTTH Termination Box Optical Network Terminal Box Admin Edit

Model: GP-ZD II
Min. Order: 1 Piece/Pieces
Trade Term: FOB,CFR,CIF,FCA,EXW
Payment Terms: Paypal, L/C, T/T, WU
Place of Origin: Zhejiang, China (Mainland)
Means of Transport: Ocean, Air, Land
Production Capacity: 50000pcs/year
Packing: 18 pcs/ctn, 51*29*42... Delivery Date: 1 week
Dimension: 264 x 154 x 56 mm Max No. of Adapter: 8
Max. No of Pigtail: 12 Max Fiber Counter: 12
Max. No of Splice Tray: 2 No of Entry / Exit Ports: 2

GP-ZD  Termination Boxis suitable for jointing fiber cable and pigtail, and it protects fiber optic splices and helps to distribute.

The termination box is either a wall-Mounting type or a desktop type, which is mainly used in telecommunication equipment room and network equipment room.





Features

● Light weight, small size, easy installation

● Provide splice protection of fiber cable and pigtail.

● Made of engineering plastic material, which has mechanical strength, therefore it is reliable and long lasting.

● Slide-in-lock fiber optic splice tray with its opening angle above 90ºC. Therefore it is easy for installation and maintenance





                         GP-ZD I                                                                                                                                GP-ZD II


Ordering Guidance

Model No.

No of Entry

/ Exit Ports

Max. No of

Splice Tray

Max Fiber

Counter

Max. No

of Pigtail

Max No.

of Adapter

Dimension

(Lx W x H) mm

GP-ZD I

2

4

24

24

/

 264 x 154 x 56

GP-ZD II

2

12

12

8


Accessories

Accessories provided with termination box: insulation tape. nylon tie. numbering paper. fixer.

Accessories to be ordered in addition : adapter, pigtail, patch cord.
