480 fibers Dome Mechanical Fiber Optical Enclosure 240 fibers FTTH Enclosure Fiber Dome Closure Admin Edit

Model: GPJ-01VM12
Min. Order: 1 Piece/Pieces
Trade Term: FOB,CFR,CIF,FCA,EXW
Payment Terms: Paypal, L/C, T/T, WU
Place of Origin: Zhejiang, China (Mainland)
Means of Transport: Ocean, Air, Land
Production Capacity: 50000pcs/year
Packing: 4 pcs / carton Delivery Date: 1 week
Total Capacity (fibers):: 480 / 240 fibers No. of Adapters:: 48 pcs of SC
Dimension (H x D) mm:: 525 x 245 mm Fiber Optic Splice Tray (FOST): 40 pieces of FOST with 12 fibers per tray

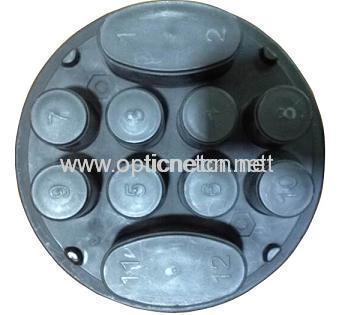

No of Cable Entry: 12 ports (mechanical type)

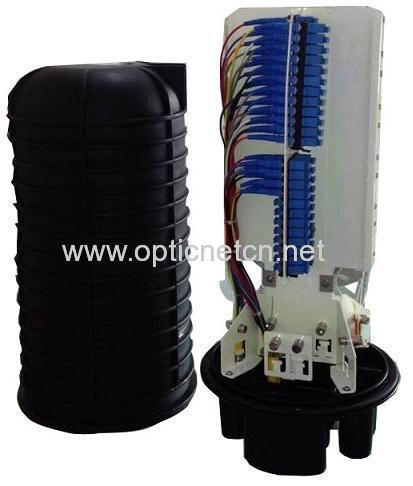

GPJ-01VM12 Fiber Optic Splice Closure


Specification

● Easy to re-enter, it never requires re-entry tool kit.

● The strong housing provide fire resistant, waterproof and quakeproof while protecting splices during pulling, torsining and impacting

● Design flexibility and high reliable sealing system

● Cable sealing method: heat shrink type and mechanical type


Application

● It can be used in straight-through and branching application

● It can be used in aerial, underground, direct buried, wall-mounting, hand hole and duct mounting application.

● It can be mounted on a pole, wall or strand.



Ordering Information

Model No.

Fiber Optic Splice Tray

(FOST)

Total Capacity

(fibers)

No. of Adapters

Dimension

 (H x D) mm

No of Cable Entry

GPJ-01VM12 I

40 pieces of FOST

with 12 fibers per tray

  480 fibers

/

 525 x 245

12 ports

(mechanical type)

GPJ-01VM12 II

20 pieces of FOST

with 12 fibers per tray

  240 fibers

48 pcs of SC


Accessories

The accessories included in the FOSC: earthing wire, nylon tie, buffer tube, emery paper, metal paper, metal hoop, insulation tape, aluminum foil.

The accessories to be ordered in addition: earthing ground, pressure testing valve, small heat shrinkable fixing sleeve (for small round),

big heat shrinkable fixing sleeve with branching-off clip (for large oval port)
