Indoor Fiber Optic Distribution Box ODF 24 fibers Optical Splitter Box Fiber Optic Distribution Cabinet Admin Edit

Model: GPX-A24
Min. Order: 1 Piece/Pieces
Trade Term: FOB,CFR,CIF,FCA,EXW
Payment Terms: Paypal, L/C, T/T, WU
Place of Origin: Zhejiang, China (Mainland)
Means of Transport: Ocean, Air, Land
Production Capacity: 20000pcs
Packing: carton box Delivery Date: 1 week
Dimension: 455*405*80 mm Max. Capacity (fiber count): 24 fibers
Max. No. of Adapters: 24 pcs of FC, SC, LC, ST, duplex LC or duplex SC No. of Ports: 8 ports or customer specified

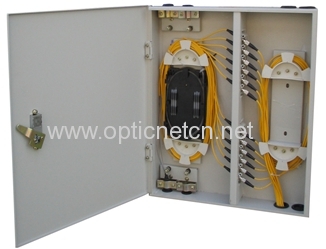

GPX-A Indoor Fiber Optic Distribution Box


Introduction

Available for small capacity communication system, wall mounting, reasonable and compact structure, harmonized with machine room. The cabinet is composed of two parts, one links with optical cables for fusion connection between optical cable and fiber pigtail and another links with patch cord. Provide fusion and storage appliance for optical cables.



Features

- The case body is made of cold rolled steel sheet, electrostatic spraying ,outdoor wall mounting, provide 24-72 adaptors, available for FC\SC\ST\LC.

- Reliable protection appliance of fixing, stripping and earthing for optical cables.

- Whole range protected design for fiber lay to ensure the bending radius ≥40mm.

- Provide various accessories to avoid any unexpected damage to the fiber.



Ordering Information

Model No.

Dimension (mm)

(H x W x D)

Max. Capacity

(Fiber Count)

Max. No of Adapters

(FC.SC,LC, ST, duplex LC

or duplex SC)

No. of Ports

GPX-A24

   455*405*80

           24

24

8 ports or

customer specified

GPX-A48

  455*405*120

          48

48

GPX-A72

  455*405*150

          72

72

Customized cabinet can be done also with your design and certain quantity




Accessories

Accessories provided with the distribution box: heat shrinkable protective sleeve, nylon tie, labeling paper, insulation tape;

Accessories to be ordered in addition: adapter, pigtail, patch cord.
