Outdoor Fiber Optical Distribution Box

Outdoor Fiber Optical Distribution Box Admin Edit

Min. Order: 1 Set/Sets
Trade Term: FOB,CFR,CIF,FCA
Payment Terms: L/C, T/T
Place of Origin: Zhejiang, China (Mainland)
Means of Transport: Ocean, Air, Land
Packing: 5 pcs/ctn
Delivery Date: 1 week
Dimension: 485*385*135 (without base) 684*385*135 (with base) Max.Capacity: 96 / 144 fibers
No.of Ports: 144 pcs Type of PLC (box type): 1x32 (2 pcs)

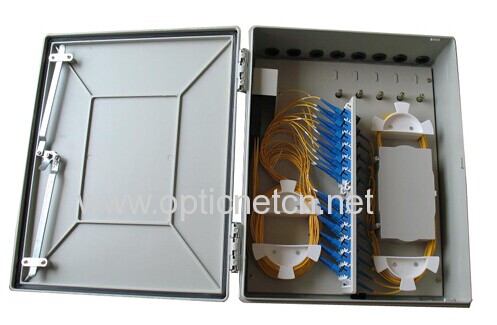

GPX-4D Outdoor Fiber Optical Distribution Box






Feature

Standard case body, made of high intensity, anti-corrosive, anti-aging special composite material, adapting various bad weather condition, with reliable sealing, water-proof and damp-proof. Splicing & distribution integration module with adaptor assembling, fusion and connection, storage in integration, inserted assembling and available for different type of adaptors such as FC,SC,ST.

Adaptors assembling with deflexion of 30º to ensure fiber pigtail bending radius with perfect control winding ring of the fiber in horizontal and vertical. It make the fiber distribution tidiness and be protected in security.

The bottom end is assembled with spare splice tray, for the direct fusion and connection of trunk optical cables and distribution cables.

Every side of the cabinet can bear the vertical pressure of 980N, and 200N for the outer edge over the door when door opened.


  Model

                Size (mm)

                  H*W*D

    Max capacity

       (fibers)

Type of PLC

(box type)

        No. of adapter

(FC, SC, ST, duplex LC)


GPX-4D I


485*385*135 (without base)

684*385*135 (with base)

96 or 144 fibers

1x32 (2 pcs)

            144 pcs


GPX-4D II


96 or 144 fibers

1x32 (2 pcs)

            144 pcs
