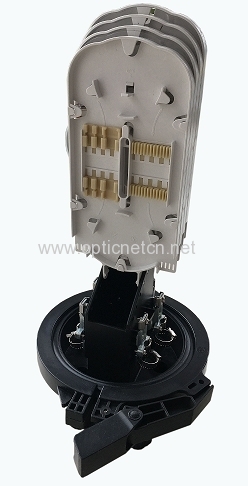

FTTH Optical Passive Splice Closure

Sealing method: mechanical sealing type
Dimension (HxD): 450x230mm
Suitable for SC, or LC connect or customerized

Suitable for wall-mounting or pole mounting application
1 pcs of large round port for uncut cable and 4 pcs of small round port

With the standard accessory (available with the accessory list)
Optional accessory: pole ring and valve

2 pcs of 1x8, 1x16 or 2x16 splitter can be installed as an option
16 ports cable entrance for drop cable, 24 adapter for drop cable patching

The product adopts fully-mechanical sealing structure. It can be used for straight-through and branching-off application

The product is environmentally sealed enclosure for the fiber management system that provides the function of splice and passive component integration

The FTTH-08VM5 from is specialized designed for FTTx application.
The product adopts fully-mechanical sealing structure.

● Easy to re-enter, it never requires re-entry tool kit.
● Design flexibility and high reliable sealing system
● Cable sealing method: mechanical

FTTH-08H6 is designed for FTTx application and adopts fully-mechanical sealing structure.
And it can be used for passive optical fiber distribution.
