24 fibers Inline Fiber Optic Splice Closure FTTH Enclosure Fiber Optic Cable Joint Box FOSC Closure Admin Edit

Model: GPJ-02HAN
Min. Order: 1 Piece/Pieces
Trade Term: FOB,CFR,CIF,FCA,EXW
Payment Terms: Paypal, L/C, T/T, WU
Place of Origin: Zhejiang, China (Mainland)
Means of Transport: Ocean, Air, Land
Production Capacity: 50000pcs/year
Packing: 10 pcs/ctn Delivery Date: in 1 week
Dimension: 280 x 175 x 80 mm Total Capacity (fibers): 24 fibers
Fiber Optic Splice Tray (FOST): 1-2 pieces of FOST 2412n with 12 fibers per tray Cable Entry and Size: 4 ports with max.¢ 17.5mm

GPJ-02HAN Fiber Optic Splice Closure


Specification

● Easy to re-enter, it never requires re-entry tool kit.

● The strong housing provide fire resistant, waterproof and quakeproof while protecting splices during pulling, torsioning and impacting.

● Design flexibility and high reliable sealing system.

● Cable sealing method: mechanical type.


Application

● It can be used in straight-through and branchingapplication.

● It can be used in aerial, underground, direct buried, Wall-mounting, hand hole and duct mounting application.

● it can be mounted on a pole, wall or strand.


Inline Fiber Optic Splice Box



Inline Fiber Optic Splice Box


Ordering Information

Model No.

Fiber Optic Splice Tray

(FOST)

Total Capacity

(fibers)

Dimension

(LxWxH) mm

Cable Entry and Size

GPJ-02HAN

1-2 pieces of FOST 2412n with 12 fibers per tray

24 fibers

280 x 175 x 80

4 ports with max.Φ17.5mm

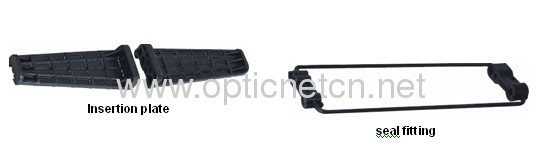

                                   Insertion Plate                                                          Seal Fitting


Accessories

Accessories provided with the FOSC: seal tape, insulation tape, special wrenches, hanging hook, emery paper, earthing wire, nylon tie,

labeling paper, measuring paper, desiccant and buffer tube.
