Dome Heat Shrink Fiber Optic Joint Box (max. 144 fibers)

Model: GPJ-08V5C
Place of Origin: Zhejiang,China (Mainland)
Dimension: 510x230(mm)
Max.Capacity: 144 fibers
Max. No. of Splice Tray: 6 pcs
No. of Ports: 1 large oval port + 4 small round ports

inquiry

skype basketAdd to Basket  Edit

Share |

Product Description

Payment & Shipping Terms Supply Capacity
Payment Terms:L/C, T/TPacking:4pcs/ctn,...
Min. Order:1 Piece/PiecesDelivery Date:one week
Means of Transport:Land, Ocean, Air

GPJ-08V5C Fiber Optic Splice Closure



Fiber Optic Joint Box (max. 144 fibers)Fiber Optic Joint Box (max. 144 fibers)Fiber Optic Joint Box (max. 144 fibers)
Fiber Optic Joint Box (max. 144 fibers)



Specification

● Easy to re-enter, it never requires re-entry tool kit.

● The strong housing provide fire resistant, waterproof and quakeproof while protecting splices during pulling, torsining and impacting.

● Design flexibility and high reliable sealing system.

● Cable sealing method: heat shrink type.


Application

● It can be used in straight-through and branching application.

● It can be used in aerial, underground, direct buried,wall-mounting, hand hole and duct mounting application.

● It can be mounted on a pole, wall or strand.


Ordering Information

Model No.

Fiber Optic Splice Tray

(FOST)

Total Capacity

(fibers)

Dimension

(H x D) mm

No of Cable Entry

GPJ-08V5C

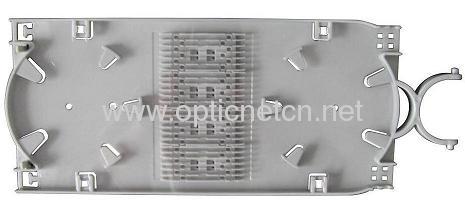

1-6 pieces of FOST 8524

with 24 fibers per tray

144

510x230

1 large oval port

4 round ports


Accessories

The accessories included in the FOSC: earthing wire, nylon tie, buffer tube, emery paper, metal paper, metal hoop, insulation tape, aluminum foil.

The accessories to be ordered in addition: earthing ground, pressure testing valve, small heat shrinkable fixing sleeve (for small round), big heat shrinkable fixing sleeve with branching-off clip (for large oval port).

Category: Dome Heat Shrink Fiber Optic Splice Closure
