Fiber Optic Splice Closure (96 Or 192 Fibers)

Fiber Optic Splice Closure (96 or 192 fibers) Admin Edit

Min. Order: 10 Piece/Pieces
Trade Term: FOB,CIF,FCA,EXW
Payment Terms: T/T
Place of Origin: Zhejiang, China (Mainland)
Means of Transport: Ocean, Air, Land
Packing: carton
Delivery Date: one week
Total Capacity (fibers): 96 or 192 Dimension (LxWxH) mm: 435x190x120 (w/o middle section)
Cable Entry and Size: 4 ports with max.ф22mm

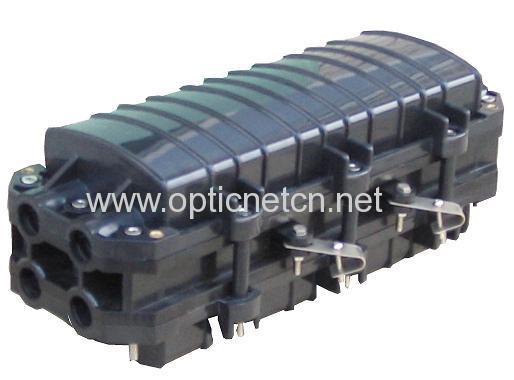

GPJ-08H8 Fiber Optic Splice Closure








Specification

● Easy to re-enter, it never requires re-entry tool kit.

● The strong housing provide fire resistant, waterproof and quakeproof while protecting splices during pulling,  torsioning and impacting.

● Design flexibility and high reliable sealing system

● Cable sealing method: mechanical type.


Application

● It can be used in straight-through and branching application

● It can be used in aerial, underground, direct buried,  wall-mounting, hand hole and duct mounting application.

● It can be mounted on a pole, wall or strand.


Ordering information

Model No.

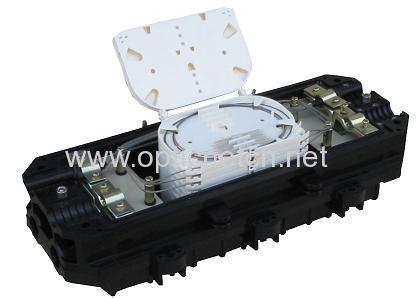

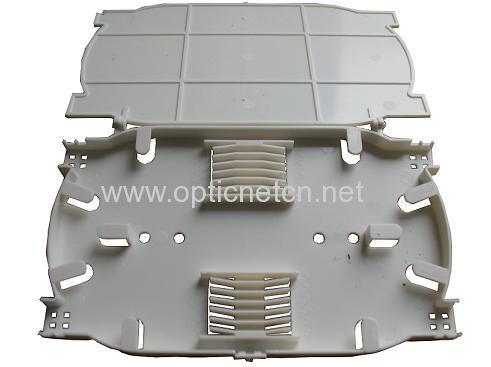

     Fiber Optic Splice Tray

                 (FOST)

Total Capacity

       (fibers)

        Dimension

       (LxWxH) mm

Cable Entry and Size

GPJ-08H8 I

1-8 pieces of FOSC 2412B

With 12 or 24 fibers per tray

96 or 192

435x190x120

(w/o middle section)

4 ports with max.ф22mm

GPJ-08H8 II

1-12 pieces of FOST 2412B

with 12 or 24 fibers per tray

144 or 288

435X190x170

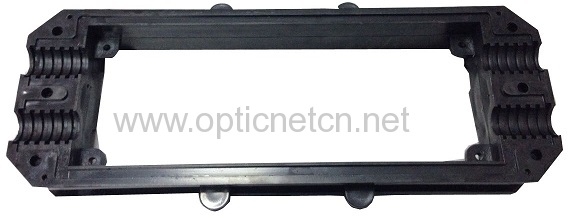

(with 1 pcs of middle section)

8 ports with max.ф22mm


Accessories

Accessories provided with the FOSC: seal tape, insulation tape, special wrenches, hanging hook, emery paper,  earthing wire, nylon tie, labeling paper, measuring paper, desiccant and buffer tube.

Accessories to be ordered in addition: pressure testing valve, earthing ground.
