Indoor Fiber Optic Distribution Box 48 fibers Network Distribution Box FTTH Distribution Terminal Box Admin Edit

Model: GPX-A48
Min. Order: 1 Piece/Pieces
Trade Term: FOB,CFR,CIF,FCA,EXW
Payment Terms: Paypal, L/C, T/T, WU
Place of Origin: Zhejiang, China (Mainland)
Means of Transport: Ocean, Air
Production Capacity: 20000pcs
Packing: carton box Delivery Date: 1 week
Dimension: 455*405*120 mm Max. Capacity (fiber count): 48 fibers
Max. No. of Adapters: 48 pcs of FC, SC, LC, ST, duplex LC or duplex SC No. of Ports: 8 ports or customer specified

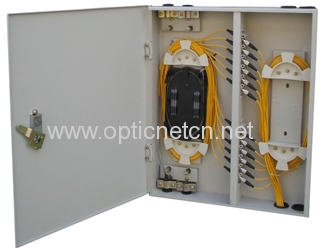

GPX-A Indoor Fiber Optic Distribution Box


Introduction

Available for small capacity communication system, wall mounting, reasonable and compact structure, harmonized with machine room. The cabinet is composed of two parts, one links with optical cables for fusion connection between optical cable and fiber pigtail and another links with patch cord. Provide fusion and storage appliance for optical cables.



Features

- The case body is made of cold rolled steel sheet, electrostatic spraying ,outdoor wall mounting, provide 24-72 adaptors, available for FC\SC\ST\LC.

- Reliable protection appliance of fixing, stripping and earthing for optical cables.

- Whole range protected design for fiber lay to ensure the bending radius ≥40mm.

- Provide various accessories to avoid any unexpected damage to the fiber.




Ordering Information

Model No.

Dimension(mm)

(H x W x D)

Max. Capacity

(Fiber Count)

 Max. No of Adapters

(FC, SC, LC, ST, duplex LC or duplex SC)

No. of Ports

GPX-A24

    455*405*80

24

24

8 ports or

customer

specified

GPX-A48

    455*405*120

48

48

GPX-A72

    455*405*150

72

72

Customized cabinet can be done also with your design and certain quantity



Accessories

Accessories provided with the distribution box: heat shrinkable protective sleeve, nylon tie, labeling paper, insulation tape ;

Accessories to be ordered in addition: adapter, pigtail, patch cord.
