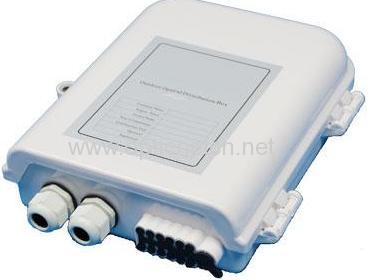

Outdoor 12 fibers Multi Dwelling Unit Fiber Optic Cable Box Network Termination Box Admin Edit

Model: MDU 212
Min. Order: 1 Piece/Pieces
Trade Term: FOB,CFR,CIF,FCA,EXW
Payment Terms: Paypal, L/C, T/T, WU
Place of Origin: Zhejiang, China (Mainland)
Means of Transport: Ocean, Air, Land
Production Capacity: 50000pcs/year
Packing: 20pcs/ctn Delivery Date: in one week
Dimension: 200x215x69(mm) Max Capacity: 12 fibers
Max.of Adpater: 12 pcs of SC simplex or LC duplex No. of Port: 2 input and 12 output
PLC Splitter: 1x4, 2x4,1x8

Outdoor MDU 212 Splitter Terminal



Outdoor 12 fibers Multi Dwelling Unit (MDU212)




Description

The MDU 212 Splitter Terminal from Optic Network Technology is rugged, low cost, low profile interconnection between central office and multi-dwelling units of FTTx application.

The design of MDU 212 splitter terminal combines the functionality of a local convergence cabinet with MDU terminal.

Its multi-layer design allows installers to access only the components necessary for initial installation or subscriber turn-up.

It can house the splitter and allows for pigtail splicing of distribution/drop cables as needed.


Features

> Indoor or outdoor rated

> Available 1x4, 2X4,1x8 splitter as well as splitter

> Max. up 12 pcs of FTTH drop cable or pigtails

> Suitable for wall-mounting or pole mounting application

> 2 pcs of inlet ports and 12 pcs of outlet ports


Application

> FTTH, FTTB, FTTC

> Telecommunication Network

> CATV

> Local Area Network





Ordering Guidance

Model

PLC Splitter

Max Capacity

Max. No. of Adapter

Dimension(mm)

No. of Ports

MDU 212

1x4, 2x4,1x8

12 fibers

12 pcs of SC simplex

or LC duplex

200x215x69

2 input ports and 12 output ports for drop cable
