Outdoor MDU Splitter Terminal 8 fibers Optical Network Terminal Box Wall Mount Termination Box Admin Edit

Model: MDU 208F
Min. Order: 1 Piece/Pieces
Trade Term: FOB,CFR,CIF,FCA,EXW
Payment Terms: Paypal, L/C, T/T, WU
Place of Origin: Zhejiang, China (Mainland)
Means of Transport: Ocean, Air, Land
Production Capacity: 50000pcs/year
Packing: carton box Delivery Date: in one week
Dimension: 200x150x45mm Max Capacity: 8 fibers
Max.of Adpater: 4 pcs of SC duplex No. of Port: 2 input ports and 8 output ports for drop cable
PLC Splitter: 1x4, 2x4, 1x8

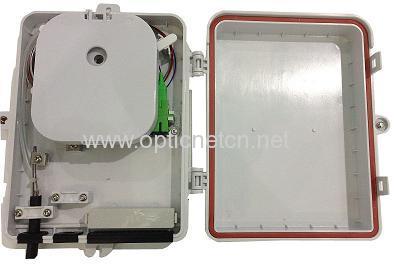

Outdoor MDU 208F Splitter Terminal


Description

The MDU 208F Splitter Terminal from Optic Network Technology is rugged, low cost, low profile interconnection between central office and multi-dwelling units of FTTx application.

The design of MDU 208F splitter terminal combines the functionality of a local convergence cabinet with MDU terminal.

Its multilayer design allows installers to access only the components necessary for initial installation or subscriber  turn-up.

It can house the splitter and allows for pigtail splicing of distribution/drop cables as needed.



Features

> Indoor or outdoor rated

> Available 1x4, 2X4,1x8 splitter as well as splitter

> Max. up 8 pcs of FTTH drop cable or pigtails

> Suitable for wall-mounting or pole mounting application

> 2 pcs of  inlet ports and 8 pcs of outlet ports

> IP Grade: IP 55


Application

> FTTH, FTTB, FTTC

> Telecommunication Network

> CATV

> Local Area Network





Dimensions

Model

PLC Splitter

Max Capacity

Max. No. of Adapter

Dimension (mm)

(WxLxD)

         No. of Ports

MDU 208F

1x4, 2x4, 1x8

8 fibers

4 pcs of SC duplex

200x150x45

2 input ports and

8 output ports for drop cable
