Outdoor Lockable 16 fibers MDU Optical Splitter Terminal Wall Mount Fiber Termination Box Splitter Distribution Box manufacturers and suppliers in China

Outdoor Lockable 16 fibers MDU Optical Splitter Terminal Wall Mount Fiber Termination Box Splitter Distribution Box Admin Edit

Model:	MDU 216B
Min. Order:	1 Piece/Pieces
Trade Term:	FOB,CFR,CIF,FCA,EXW
Payment Terms:	Paypal, L/C, T/T, WU
Place of Origin:	Zhejiang, China (Mainland)
Means of Transport:	Ocean, Air, Land
Production Capacity:	50000pcs/year

Packing:	10 pcs/ctn,...	Delivery Date:	in one week
Dimension:	320 x 260 x 90 mm	Max. Capacity:	16 fibers
No of Ports:	2 input ports and 16 output ports	Max. No. of Adapter:	16 pcs of SC simplex or LC duplex
PLC Splitter:	1x4, 2x4, 1x8, 2x8 or 2x16

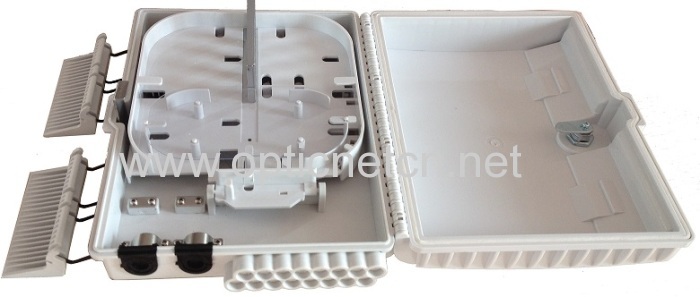

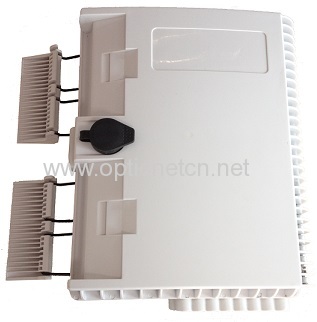

Outdoor MDU 216B Splitter Terminal

Description

The MDU 216B Splitter Terminal from Optic Network Technology Co.Ltd. is rugged, low cost, low profile interconnection between central office and multi-dwelling units of FTTx application.

The design of MDU 216B splitter terminal combines the functionality of a local convergence cabinet with MDU terminal.

Its multi-layer design allows installers to access only the components necessary for initial installation or subscriber turn-up.

It can house the splitter and allows for pigtail splicing of distribution/drop cables as needed.

Features

(1) Indoor or outdoor rated

(2) available 1x4, 1x8, 1x16 splitter as well as 2x4, 2x8, 2x16 splitter

(3) Max. up 16 pcs of FTTH drop cable or pigtails

(4) Suitable for wall-mounting or pole mounting application

(5) 2 pcs of inlet ports and 16 pcs of outlet ports

(6) With door lock

Application

(1) FTTH, FTTB, FTTC

(2) Telecommunication Network

(3) CATV

(4) Local Area Network

Dimensions

Model	Max. capacity	Max. No. of Adapter	PLC Splitter	Dimension(mm) (WxLxD)	No. of Ports
MDU 216B	16 fibers	16 pcs of SC simplex or LC duplex	1x4, 2x4,1x8, 2x8 or 2x16	320x260x90	2 input ports and 16 output ports

Model

Max. capacity

Max. No. of Adapter

PLC Splitter

Dimension(mm)

(WxLxD)

No. of Ports

MDU 216B

16 fibers

16 pcs of SC simplex or LC duplex

1x4, 2x4,1x8,

2x8 or 2x16

320x260x90

2 input ports and

16 output ports

Packing Information

Model	N.W (kg/pcs)	Dimension of Carton (mm)	G.W of Carton (kg/carton)	Quantity / per Carton(pcs/carton)
MDU 216B	1.40	550355620	16.10	10

Model

N.W

(kg/pcs)

Dimension of Carton (mm)

G.W of Carton

(kg/carton)

Quantity / per Carton(pcs/carton)

MDU 216B

1.40

550*355*620

16.10
